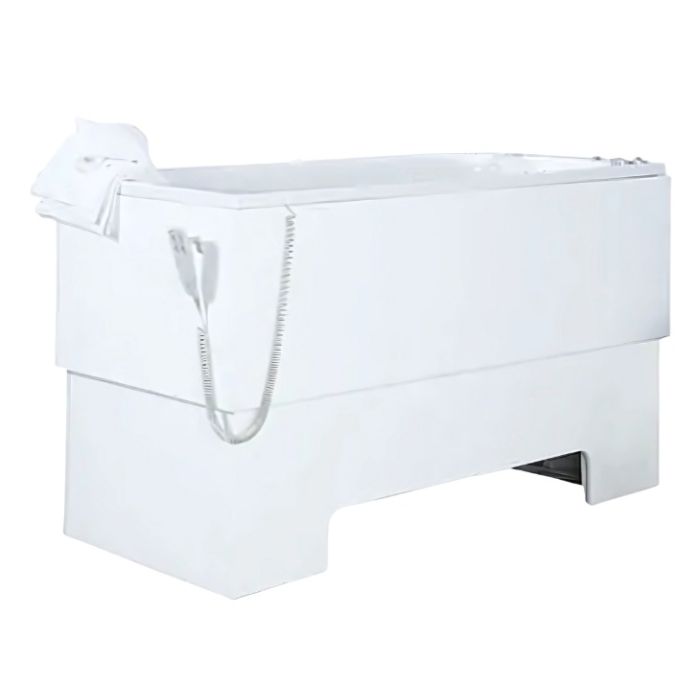

Renaissance Excel 400 Height ADJ Bath, Full or Hoist Panels - Choice of Size & Waste
The Renaissance Excel 400 bath with 340mm of height adjustment, helps to prevent carers from hurting their backs while assisting and washing client users. The bath does not feature a seat, for use with ceiling track hoists, mobile hoists, slings and/or cradles. Choice of size - 1700x750mm or 1800x800mm and waste position. Optional luxury mesh changing top with head and side supports. Tap and shower options with TMV2 and TMV3 temperature control. Optional 12 Jet Air Spa system, Colour-changing Lights and Bluetooth audio. Max load: 30st / 185kg. Manufactured in the UK.
Free site visit and demonstration available - please contact us
In cases where a seat is not required to get the bather in and out of the bath, where ceiling track hoists, mobile hoists, slings and/or cradles are being used, the Excel 400 is the solution.
This height adjustable bath prevents repetitive strain on the carer's back, as the bath can be raised or lowered to the carer's desired position.
This bath can be supplied with a full panel if the mobile hoist access panel is not required.
Height adjustable bath, with a stepless range of 340mm
Includes all panels: 1x front and 1x rear panels, 2x end panels
Electrically operated with battery backup for client evacuation, in the event of power failure
Chrome pop-up waste in a choice of position - opposing end of seat or centre
Bath height in raised position (mm): 1060
Bath height in lowered position (mm): 720
Front panel cut-out for hoist access (mm): 1030 L x 150 H
Safe-working Load 30st / 185kg
Acrylic bath shell, manufactured in the UK, CE compliant
Handset:
Easy to use
The “Bath up” button raises the bath to a comfortable height
The “Bath down” button lowers the bath after bathing
The bath can be stopped at any height by simply lifting your finger off the button
Optional Luxury changing top for use with hoists:
Removable changing top, with removable machine washable mesh cover. The optional head and support cushions are shown in the image
Luxury Changing Top (For use with 1700x750mm end waste bath)
Luxury Changing Top (For use with 1800x800mm end waste bath)
Head support cushion for the changing top, provides the bather greater comfort
Side support cushion for the changing top, provides the bather greater security
Choice of Hoist or Full Front / Rear Panel:
Select as required
Hoist access front / rear panel or Full front / rear panel
Tap options, supplied fitted and plumbed:
Pair of Lever Taps with Underbath TMV3 Valve - WRAS approved
Bath Filler with Underbath TMV3 Valve - WRAS approved. Giving you the ability to control the water temperature through one outlet
TMV2 Bath/Shower mixer is popular in a domestic situation, Ideal if the bath is used primarily by one person. (Not suitable for commercial installations i.e care homes)
Bath/shower Mixer with Top-fixing shower with Underbath TMV3 Valve - WRAS approved
If taps are NOT selected, the bath will be supplied with tap holes undrilled
Shower option: Note: A bath filler not included
TMV3 Shower System CAT5 Fluid Safe (Shepherd's Crook) is the necessary choice in multi-user situations for commercial installations i.e. care homes
Sensory options:
To make the bathing experience more enjoyable and relaxing, the bath can be customised with three sensory systems:
Optional Air Spa System:
The Air Spa system has 12 jets in the base of the bath and has three settings and auto-dry
1 - Pressing the button once gives a gentle massage effect
2 - Pressing it again gives a stronger massage
3 - Pressing it a third time gives a vigorous massage
4 - A fourth press switches the system off
Once the bath has drained, the system will briefly operate to dry out the jets
Note: The Air jets are not recessed and are "proud" of the surface of the bath
Optional Colour-changing Lights:
Pair of Chromotherapy Colour-Changing Lights
These can be set at one specific colour, by pressing the “manual” button
Pressing the “auto” button the lights slowly change from one colour to another flooding your bath with soothing light
Optional Bluetooth Wireless Sound System:
The Bluetooth Audio system allows you to connect wirelessly to a system so that you can listen to music or audio books; whatever is your preference
Delivery:
Standard delivery - one man delivering to curbside
Two man delivery - delivery to ground floor bathroom
Please contact us if the intended location of the bath is beyond the ground floor or is difficult to access
Commissioning:
Commissioning by Renaissance ensures correct installation and training on safe use of the bath
This is optional for domestic installations, but is essential for commercial properties to maintain LOLER compliance
Ongoing Service and Maintenance Packages are available to ensure a trouble-free, long-term future
Electrical requirements:
230V AC supply - requires a 30mA RDC with a 4A waterproof switched fused spur (not supplied)
Supplied with a standard UK 3 pin plug for testing and setting up purposes, this must be removed and wired to your 4A waterproof fused spur
Backup battery requires a continuous power supply to maintain the batteries condition
All electrical installations should be performed by a qualified electrician
Warranty:
Mechanical and electronic components have a full 12 month warranty
Bath shell has a 25 year manufacturer guarantee against material and manufacturing defects
Please note:
These baths are custom-made, once the manufacturing process has begun, we cannot accept returns
Upon placing your order you will be required to complete and return an order form prior to manufacture
VAT Exemption is available on this product - deducted at Checkout (Info)
