Purus Mini Oden 50 Horiz Outlet - OPT Security Fixings

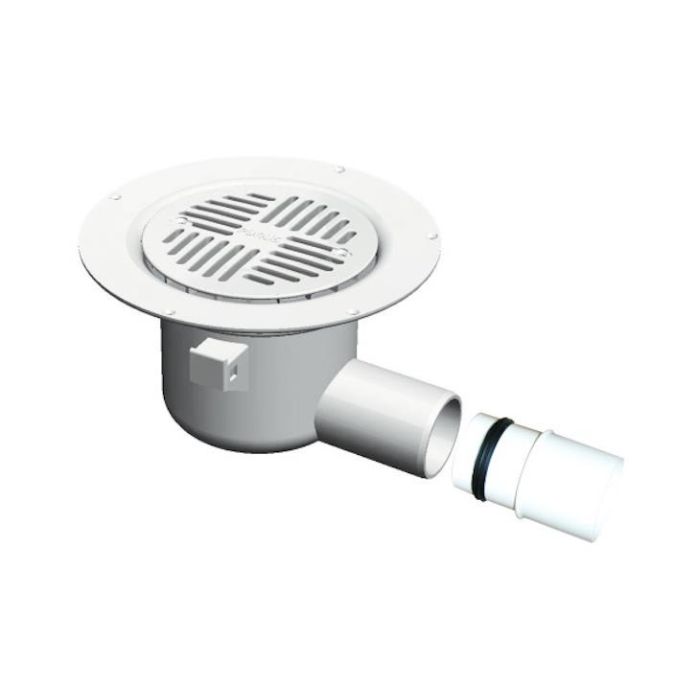

Purus Mini Oden 50 shower waste with 40mm horizontal outlet. 197mm overall diameter. For wet room floor formers such as the Maxxus shower deck. The NOOD water trap to prevent the release of foul odours. Optional security fixings for the plastic grate.
The Purus Mini Oden 50 is a shower waste suitable for wet room floor formers, such as the Maxxus shower decks.
130mm in diameter, it features a 40mm horizontal outlet side connection.
Technical details:
- Flow rate 48 litres per minute
- Connection: Side, 50mm with UK adapter (40mm)
- Diameter: 197mm overall
- NOOD sprung water trap, prevents foul air escaping. The weight of the water opens the trap
- The NOOD water trap is removable for easy cleaning
- Material: Plastic (Polypropenplast)
Compatibility:
- Vinyl flooring - The clamping ring retains the vinyl flooring, see PDF installation instructions
- Tiled flooring - The clamping ring retains the Fabric or Butyl Drain Gasket that should be bonded in place as part of your tanking system, see PDF installation instructions
Options:
- Security fixing screws to prevent the removal of the grate - select if required
- Can be upgraded to a stainless-steel grate - Purus circular grates available separately
- Suitable for tiled flooring with the addition of a Purus Tile Adapter or square stainless-steel grate - available separately
Manufacturer | Purus |
---|---|
Configuration | Gravity Waste |
Compatible Tray or Former | AKW - Tuff Form, AKW - Tuff Form8, AKW / Contour - ShowerDec, Maxxus |
Installation | Floor Formers, Concrete / Screed Floors, Timber Floors |
Application | Floor Former, Screed/Timber Floors w/ Purus Plate 130, Has Lockable Grate |
Waste Diameter (mm) | 200 |
Waste Outlet / Depth (mm) | Horizontal |
Flow Rate / l/min | 48 |
Floor Finish | Tiled Flooring, Vinyl Sheet Flooring |
Grate Material / Finish | Plastic / White |
Stock status | In stock |
---|---|
Delivery time | Next working day if ordered by 2pm |
Returns Status | Returnable in 14 days |
