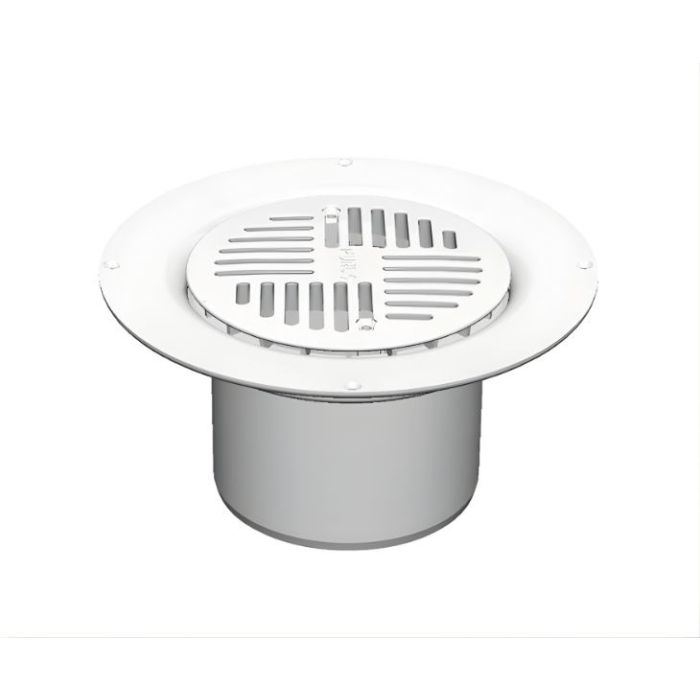

Purus Mini Brage 110 Vertical Outlet - OPT Security Fixings
Purus Mini Brage 110 shower waste with a vertical outlet, 110mm bottom outlet connection. 197mm overall diameter. For wet room floor formers such as the AKW and Maxxus floor formers. Includes a NOOD water trap to prevent the release of foul odours. Optional security fixings for the plastic grate.
The Purus Mini Brage 110 is a shower waste suitable for wet room floor formers, such as the AKW and Maxxus floor formers.
130mm in diameter, it features a 110mm bottom / vertical connection to the soil pipe.
Technical details:
- Flow rate 48 litres per minute
- Connection: Bottom, 110mm
- Overall diameter: 197mm
- NOOD sprung water trap, prevents foul air escaping. The weight of the water opens the trap
- The NOOD water trap is removable for easy cleaning
- Material: Plastic (Polypropenplast)
- Can be mounted in the Purus Plate 130 (Product Code: 7133681) that assists with building in falls for screed and timber floors, when not using a floor former
Compatibility:
- Vinyl flooring - The clamping ring retains the vinyl flooring, see PDF installation instructions
- Tiled flooring - The clamping ring retains the Fabric or Butyl Drain Gasket that should be bonded in place as part of your tanking system, see PDF installation instructions
Options:
- Security fixing screws to prevent the removal of the grate - select above if required
- Can be upgraded to a stainless-steel grate - Purus circular grates available separately
- Suitable for tiled flooring with the addition of a Purus tile adapter or square stainless-steel grate - available separately
Manufacturer | Purus |
---|---|
Configuration | Gravity Waste |
Compatible Tray or Former | AKW - Tuff Form, AKW - Tuff Form8, Maxxus |
Installation | Floor Formers, Concrete / Screed Floors, Timber Floors |
Application | Floor Former, Screed/Timber Floors w/ Purus Plate 130, Has Lockable Grate |
Waste Diameter (mm) | 200 |
Waste Outlet / Depth (mm) | Vertical |
Flow Rate / l/min | 48 |
Floor Finish | Tiled Flooring, Vinyl Sheet Flooring |
Grate Material / Finish | Plastic / White |
Stock status | In stock |
---|---|
Delivery time | Next working day if ordered by 2pm |
Returns Status | Returnable in 14 days |
Select your Country and enter your Postcode to check available shipping options and calculate rates for this product
Product Code:
7113538UK
RRP Inc. VAT: £112.42 Save 44%
In stock (Info)
Next working day if ordered by 2pm
VAT Exemption is available on this product - deducted at Checkout (Info)
Purus Mini Brage 110 shower waste with a vertical outlet, 110mm bottom outlet connection. 197mm overall diameter. For wet room floor formers such as the AKW and Maxxus floor formers. Includes a NOOD water trap to prevent the release of foul odours. Optional security fixings for the plastic grate.
In stock
£62.95
£52.46
