Purus SS Channel Drain 100, Vinyl Floor Chess Grid, End Outlet, 800-2500mm Lengths

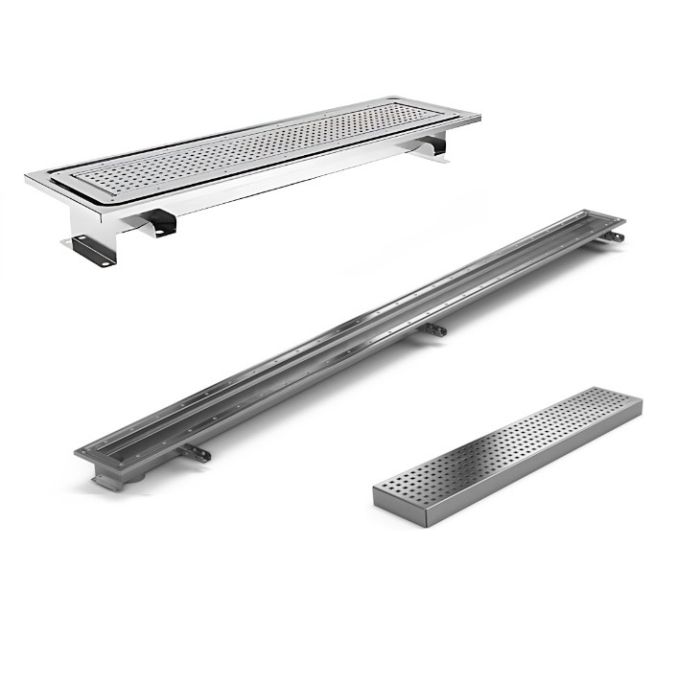

Purus stainless steel Channel 100 drain with a Chess grid for vinyl sheet flooring in shower wet areas that require longer continuous channel drains. Available in a range of lengths 800 to 2500mm, end outlet, choice of 3x plastic wastes with horizontal and vertical outlets. Or upgrade to the Acid-resistant stainless steel body vertical outlet. See below for more information.
Custom made lengths are available by special order, if required please contact us.
Key benefits:
- 800-2500mm lengths
- Manufactured from Premium quality 304 stainless steel
- For vinyl sheet flooring
- For installation in timber and concrete floors
- End waste outlet
- Stainless steel Chess Grid
- Heel-safe ideal for bare-foot areas
- Horizontal and vertical plastic bodied wastes, with spring loaded Nood no-odour water trap
- Vertical acid-resistant stainless steel vertical waste also available
- For shower areas, changing rooms, leisure facilities and hotels
- Special order lengths, 600, 900, 1100 and 1400mm
- Bespoke custom sizes available - please contact us
- Made in Sweden
- See PDF installation instructions for more information
Outlet options:
- 30l/min flow rate
- 50mm outlet
- Includes 40mm solvent weld reducer
- Spring loaded Nood no-odour trap
- Plastic body
- 60l/min flow rate
- 50mm outlet
- Includes 40mm solvent weld reducer
- Water seal trap
- Plastic body
- 78l/min flow rate
- 75mm outlet
- Water seal trap
- Plastic body
- 78l/min flow rate
- 110mm outlet
- Water seal trap
- 1.4404 Acid-resistant stainless steel body
Horizontal Low - PR640:
Horizontal Standard - PR639:
Vertical 75 - PR539:
Vertical 110 - PR536:
Warranty:
- 5 years – Must be installed in accordance with the installation instructions, and all maintenance instructions are adhered to
Product codes:
- Centre outlet: CH1080VE, CH1010VE, CH1012VE, CH1015VE, CH1020VE, CH1025VE
Manufacturer | Purus |
---|---|
Configuration | 800mm Linear / Channel Drain, 1000mm Linear / Channel Drain, 1200mm Linear / Channel Drain, 1500mm Linear / Channel Drain, 2000mm Linear / Channel Drain, 2500mm Linear / Channel Drain |
Installation | Concrete / Screed Floors, Timber Floors |
Application | Screed Floors, Timber Floors |
Waste Depth / Outlet Position | End Outlet |
Flow Rate / l/min | 30, 60, 78 |
Floor Finish | Vinyl Sheet Flooring |
Grate Material / Finish | Stainless Steel / Chess Grid |
Stock status | Made to order |
---|---|
Delivery time | 3-4 weeks |
Returns Status | Custom Made, non-returnable |
