Pressalit VALUE Mounting Plate, Manually Height ADJ

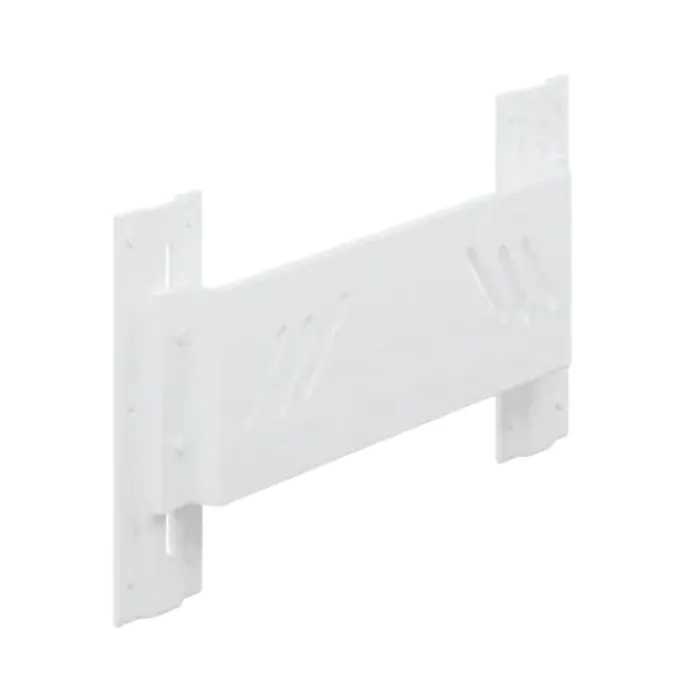

Pressalit VALUE height adjustable washbasin bracket, for mounting the MATRIX Small and Curve/Curve Il wash basins.
Manually operated, it is suitable for occasional height adjustments.
With the bracket mounted at the recommended height, the washbasin can be adjusted by 150mm from 750mm to 900mm above floor level.
Key benefits:
- Manually operated height adjustable washbasin bracket
- Suitable for occasional adjustments up to 150mm
- Adapts to progressive needs of individuals
- Good access to working mechanism
- For mounting the MATRIX Small and Curve/Curve Il wash basins
- Includes fixing kit for brick wall
- Rilsan-coated steel with clean white finish
Technical details:
- Overall width of basin bracket (mm): 725
- Width of basin bracket (mm): 600
- Height of basin mounting plate (mm): 180
- Width of wall each wall channel fixing (mm): 125
- Height of each wall channel fixing (mm): 350
- Height adjustment (mm): 150
- For washbasins weighing (kg): 16-22
- Maximum load (kg): 80
- Weight (kg): 7.88
- Colour: White
Declaration of conformity:
- CE UK MDR This product is in compliance with all relevant requirements of:
- - Regulation (EU) 2017/745 on medical devices
- For the UK: - Medical Device Regulation (MDR) 2002 on medical devices
Materials:
- Basic material: Steel
- Surface material: Rilsan coated
Optional Pressalit WRAS approved waste kit:
- 500mm Flexible Feeds and 700mm Flexible Waste System (Product Code: R2071)
- 700mm Flexible Feeds and 700mm Flexible Waste System (Product Code: R2075)
Warranty:
- 5 year manufacturer warranty
Please note:
- This bracket is NOT suitable for regular height adjustments on a daily basis
- It requires two people to raise/lower the attached basin, and so should only be used for occasional height adjustments
Manufacturer | Pressalit |
---|---|
Bracket Range | Pressalit VALUE |
Bracket Operation | Manual |
Bracket Adjustment | Bolt Adjustment |
Height Adjustment (mm) | 150 |
For Wash Basin Range | MATRIX Curve, MATRIX Curve II, MATRIX Small |
Bracket Mounting | Wall |
Safety Stop | No |
Stock status | Available to order |
---|---|
Delivery time | 1-2 weeks |
Returns Status | Returnable in 14 days |
