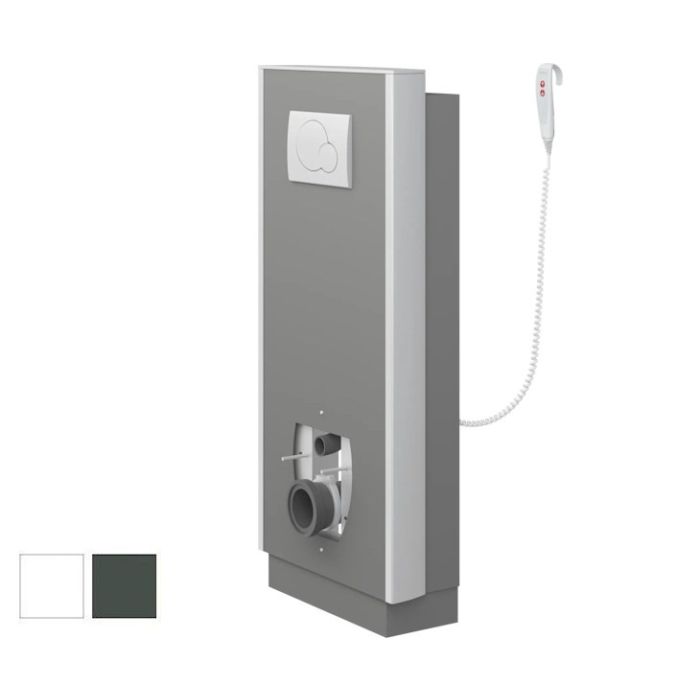

Pressalit SELECT TL1 Toilet Lifter, ELECT ADJ, Wired Hand Control, Floor Outlet - Choice of Colour
Electric height adjustable toilet lifter from the Pressalit SELECT range.
The toilet lifter provides 400mm of continuous adjustment, via the wired hand controller, between 425 - 825mm.
The lifter can be at different heights to suit different users/transfer techniques, powered adjustments with an easy to use controller where frequent adjustments are essential.
The SELECT toilet lifter can be further complimented with fixed or removable backrests or a shower toilet for a bespoke solution.
Includes a Geberit concealed cistern with dual flushing, pre-set at 3/6 litres. The toilet lifters front cover is available in a choice of colours.
This slim version has no support arms and is for floor waste outlets only.
Key benefits:
- SELECT TL1 toilet lifter, electrically height adjustable, even with the user seated
- The toilet can be raised and lowered 400mm using the wired hand control
- Designed with a minimum of grooves, slots and holes making cleaning fast and effective
- Geberit cistern with dual flushing system pre-set at 3/6 litres
- The toilet pan and toilet seat are not included (order separately)
- Pressalit backrests fixed and removable can be fitted to the front plate (order separately)
- Choice of front cover colour
WC pan compatibility:
- Toilet lifter WC pan fixings 180mm c/c
- Compatible with the Pressalit Wall hung toilet pans with a 540mm or 700mm projection
- Please contact us to check for compatibility with a shower toilet.
Technical details:
- Overall width (mm): 555
- Overall depth (mm): 215
- Height Min-Max (mm): 1230-1630
- Height adjustment (mm): 400
- Height adjustment range (mm): 425-825
- Geberit cistern with dual flushing system preset at 3/6 litres
- Geberit dual flushing plate, surface mounted
- Floor waste outlet
- Weight (kg): 60.0
- Maximum user weight (kg): 200
- Maximum load, including user mass and accessories (kg): 235
- Speed, up (mm/s): 12
- Speed, downwards (mm/s): 12
- Noise level (dB): 48
Electrical technical details:
- Please refer to the PDF download for the installation instructions
- Mains connection (V): 230
- Mains cable length to Transformer (mm): 3500
- Hz: 50-60
- Electrical rating (IP): IPX6
- Power consumption (max. load) (W): 70
- Power consumption (standby) (W): 2
- Actuator (motor): LA31 Careline, (Linak), 4000N, IPX6
- Control box: CB9 Careline, (Linak), IPX6
- Wired remote control: HB3 (Linak), IP66
- Wired controller cable length from control box / transformer (mm): 3500
- Note: Upon installation the 2-pin plug must be removed and hard wired to a fused spur, as per electrical regulations
Materials:
- Toilet lifter: Mainly constructed of anodised aluminium
- Front plate and Bottom plate: Made of polystyrene (PS)
Declaration of conformity:
- Complies with the requirements of Council Directive 93/42/EEC concerning medical devices, as last amended by Council Directive 2007/47/EC of 5 September 2007
- It also complies with all relevant requirements in the Council Directive 2006/42/EC (of 17 May 2006) on machinery and the Council Directive 2011/65/EC on RoHS
Warranty:
- 5 year manufacturer warranty
Manufacturer product codes:
- R8212000, R8212112,
Returns: Please note:
- Due health and hygiene and infection control this product is non-returnable
Manufacturer | Pressalit |
---|---|
Brand / Model | Pressalit / Select |
Height ADJ Range (mm) | 400 |
Installation Type | Exposed |
Flush Operation | Front Dual Button Flush |
Operation | Wired Hand Controller |
Waste Outlet Position | Floor |
Support Arms | No |
Stock status | Made to order |
---|---|
Delivery time | 3-4 weeks |
Returns Status | Non-returnable due to infection control. |
