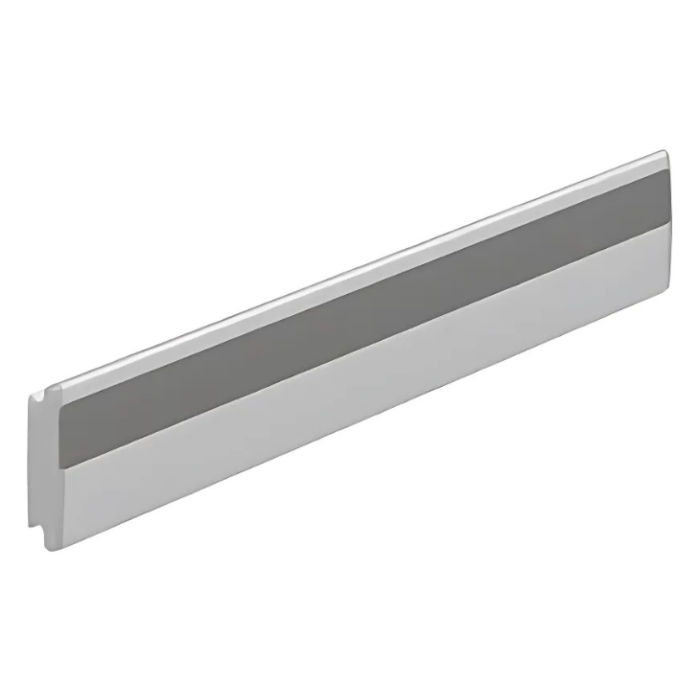

Pressalit PLUS Horiz Wall Track - Anthracite Grey, 600-3900mm Lengths
Pressalit PLUS wall track for horizontal mounting, which allows movement of products - to push within reach or out of the way for different user situations.
Allowing for space efficiency, products can be moved into dead space. Available in lengths from 600 to 3900mm.
This clever wall track is very configurable and eliminates the need to adapt a bathroom to different user requirements. A future proof arrangement.
The wall track is used for mounting of support arms, shower seats and wash basin brackets, and allows sideways adjustment of these products.
Key benefits:
- Horizontal wall track
- For the mounting of support arms, shower seats and wash basin brackets etc. from the Pressalit PLUS range for manual sideways movement
- The horizontal track makes it possible to shift the product along the wall to constantly optimize the available space in the bathroom
- The track distributes the weight of the individual bathroom product, for example a wash basin bracket, along its entire length
- Pressalit Plus products can be adjusted and locked on to the track with intuitive locking functions
- The cover plate hides mounting bolts and wires and facilitates cleaning
- Choice of length
- Can be cut to length on site
Technical specification:
- Anthracite grey colour cover plate
- Recommended installation height to the top of the wall track (mm): 852
- Track height (mm): 128
- Track depth (mm): 33
- Depending on the wall type, the track has a maximum load of 1000kg
- Materials: The wall track is primarily made of 10-micrometre anodized aluminium
- Materials: The cover plate is made of polystyrene
- Materials: The ends of the track are capped with ABS polymer
Recommended mounting instructions:
- Leave a minimum of 100mm from an inside corner junction
- Always place screws in the upper and bottom outer holes at both ends of the wall track.
- It is recommended to place the remaining screws as far as possible in every second hole in the upper row and in every third or fourth hole in the bottom row.
- Every installation is individual, and these recommendations should be considered as guidelines only.
- Download the installation instructions for the recommended number of wall fixings for different track lengths and wall types.
Additional fixings:
- If you are installing this track in a wet installation, you will require a Water Sealing Strip 3m length (Product Code: V8530) and Water Sealing Washers, supplied in packs of 10x washers (Product Code: LA8817)
- Fixing bolts are not included
- Track Stop (Product Code: RT761) is required to limit sideways movement and prevent goods sliding off the end of the track
Warranty:
- 5 year manufacturer warranty
Manufacturer product codes:
- R9806112, R9809112, R9812112, R9815112, R9818112, R9821112, R9824112, R9827112, R9830112, R9833112, R9836112, R9839112
- Replaces product codes: R9901, R9806182, R9809182, R9812182, R9815182, R9818182, R9821182, R9824182, R9827182, R9830182, R9833182, R9836182, R9839182
Manufacturer | Pressalit |
---|---|
Track Type | Horizontal |
Colour | Anthracite Grey |
Stock status | Available to order |
---|---|
Delivery time | 1-2 weeks |
Returns Status | Returnable in 14 days |
