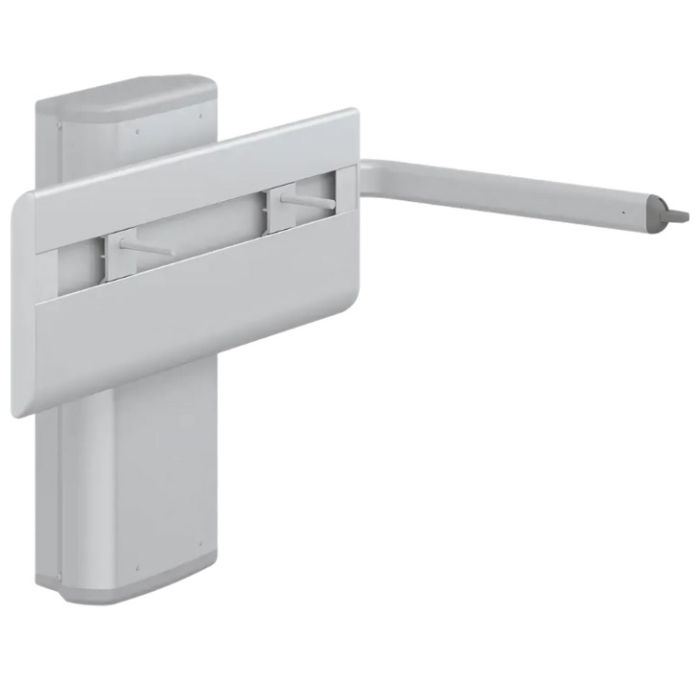

Pressalit PLUS Basin Bracket, Lever CONT, Manually Height ADJ, Gas Cylinder
Pressalit PLUS wash basin bracket with lever control, manually height adjustable with gas cylinder for mounting the Pressalit Matrix Curve, Matrix Curve II and Matrix Small wash basins.
The height of the wash basin can easily be adjusted by means of the lever control. Assistance is required to push the rear of the basin on the downward stroke.
With the bracket mounted at the recommended height, the washbasin can be adjusted by 300mm from 668mm to 968mm above floor level.
Key benefits:
- 300mm Stepless manual adjustment
- Adapts to progressive needs of individuals
- The height of the wash basin is easily adjusted by means of the lever control
- The lever control is placed by the front of the wash basin
- The lever control can be placed on the left or right-hand side of the wash basin
- Suitable for regular height adjustments on a daily basis
- Note: Assistance is required to push the rear of the basin on the downward stroke
- The arm that holds the lever control can function as a towel rail
- The wash basin bracket suits all types of bolt-mounted wash basins
- Rounded, sleek design greatly facilitates cleaning
- Eliminates need for adaptation work in the future
- Includes fixing kit for basin (excludes wall fixing kit)
Technical details:
- Height adjustment range (mm): 300
- Width of basin mounting bracket (mm): 618
- Width of wall track (mm): 236
- Height of bracket (mm): 536
- Total projection from the wall (excluding basin) (mm): 154
- Length of lever control arm (mm): 394
- Weight (kg): 11.70
- Maximum load (kg): 135
- Gas cylinder supplied for washbasins weighing (kg): 16-22
- By special order for wash basins weighing (kg): 8-12 or 12-16 - please contact us with your requirements
Materials:
- Washbasin bracket: Primarily made of 10-micrometre anodized aluminium
- Bracket ends: Capped with ABS polymer
- Lever control: ABS polymer switch at the end of an anodized aluminium arm
Declaration of conformity:
- CE UK MDR-MASK This product is in compliance with all relevant requirements of:
- - Regulation (EU) 2017/745 on medical devices
- - Council Directive 2006/42/EC on machinery
- For the UK:
- - Medical Device Regulation (MDR) 2002 on medical devices
- - Supply of Machinery (Safety) Regulations 2008
Optional Pressalit WRAS approved waste kits:
- 700mm Flexible Feeds and 700mm Flexible Waste System (Product Code: R2075)
- 900mm Flexible Feeds and 900mm Flexible Waste System (Product Code: R2077)
Warranty:
- 5 year manufacturer warranty
Former manufacturer code:
- The Pressali PLUS range has superseded several former Pressalit products
- This item has replaced: R4360
- Please check for any changes to the product specification
Manufacturer | Pressalit |
---|---|
Bracket Range | Pressalit PLUS |
Bracket Operation | Gas Assisted |
Bracket Adjustment | Manual Lever |
Height Adjustment (mm) | 300 |
For Wash Basin Range | MATRIX Curve, MATRIX Curve II, MATRIX Small |
Bracket Mounting | Wall |
Safety Stop | No |
Stock status | Available to order |
---|---|
Delivery time | 1-2 weeks |
Returns Status | Returnable in 14 days |
