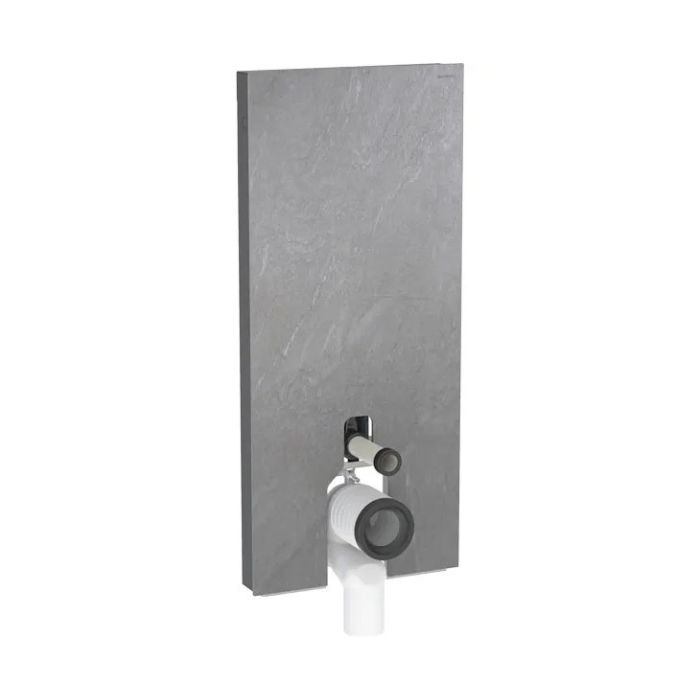

Geberit Monolith for Floor-standing WC, 114 cm, Front: Stoneware Slate Look, Sides: Black Chrome ALU
Geberit Monolith for floor-standing WC for floor inlets with an installed height of 114 cm (1140mm). A stylish dual flush, self-supporting concealed cistern that is fully insulated against condensation. The front panel is made of stoneware slate look with brushed aluminium black chrome side profiles.
For connecting Geberit AquaClean Tuma WC complete solution and Geberit AquaClean Enhancement solutions with accessories in front of drywalls or solid walls on finished floors.
Additional application purposes:
- Ideal for renovations, conversions, and new buildings
- For wall inlets with an inlet of height 18 cm
- For replacing floor-standing WCs with concealed cisterns with a maximum service opening height < 109 cm
- For replacing floor-standing WCs with close-coupled exposed cistern
- For replacing low-level and half-high level exposed cisterns
- For replacing pressure flushing valves
Key benefits:
- Dual flush
- Adjustable flush volume
- Self-supporting
- Cistern, fully insulated against condensation
- Compensation of dimensional tolerances possible
- Rear centre or bottom water supply connection
- Left/right water supply connections possible with accessories (not included)
Technical details:
- Front cladding: Stoneware slate look
- Side cladding finish: Brushed aluminium
- Side cladding colour: Black chrome
- Height (mm): 1140
- Width (mm): 505
- Depth (mm): 106
- Flow pressure: 0.1-10 bar
- Max. operating water temperature: 25°C
- Flush volume, factory setting: 6 & 3 l
- Flush volume large, adjustment range: 4.5 / 6 l
- Small flush volume: 3 l
- Calculated flow rate: 0.11 l/s
- Minimum flow pressure for calculated flow rate: 0.5 bar
Scope of Delivery:
- Water supply connection set with 2 angle stop valves 1/2"
- Flush bend extension 160 mm
- Connection bend made of PP, ø 90 mm
- Sleeve made of EPDM, ø 44 / 55 mm
- Adaptor socket made of PE-HD, ø 90 / 110 mm
- Fastening material
- Base cover
- Fastening material for drywall
Manufacturer warranty:
- 2-year manufacture warranty
Please note:
- Due to the hygiene reasons, this product is non-returnable
- The colour and structure may vary on natural products
- Geberit will extend the warranty by one year if installed by a registered installation company and if you registered on Geberit website or return the supplied warranty card within 90 working days of the installation
Manufacturer | Geberit |
---|---|
Brand / Model | Geberit / Monolith |
Can Be Combined With | Geberit AquaClean Tuma Comfort Free-standing WC Complete, Geberit AquaClean Tuma Classic Free-standing WC Complete, Geberit AquaClean WC Enhancement Solutions with Accessories, Conversion Set for Geberit AquaClean WC Enhancement |
Colour | Stoneware Slate Look |
Frame Size (mm) | Frame Height: 1140 |
Technical Info. | Factory Setting - Small Flush: 3 l, Flush Volume Factory Setting - 6 and 3 l, Flush Volume Large Adjustment Range - 4.5 / 6 l |
Waste Outlet Position | Floor |
Warranty | 2 Year Standard |
Flush Operation | Top Dual Push Button Flush |
Technologies | Dual Flush |
Stock status | Available to order |
---|---|
Delivery time | Please Email for a lead time |
Returns Status | Non-returnable due to infection control. |
