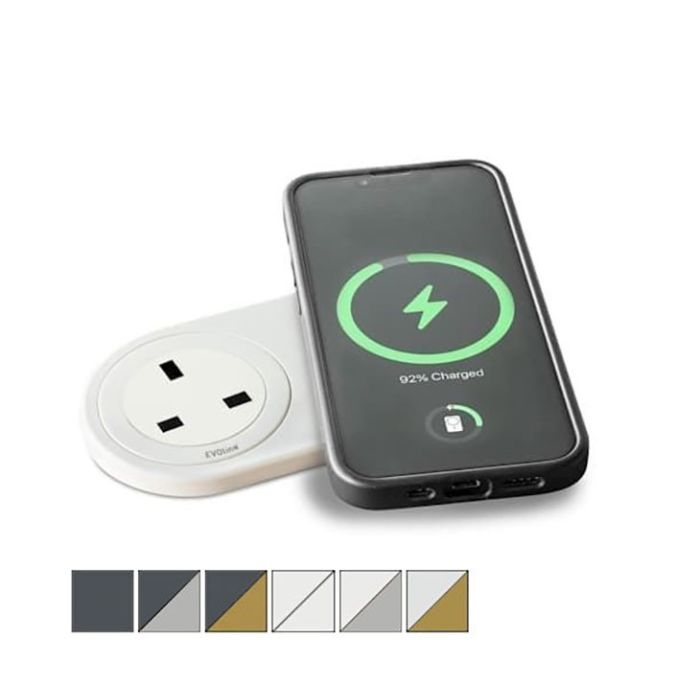

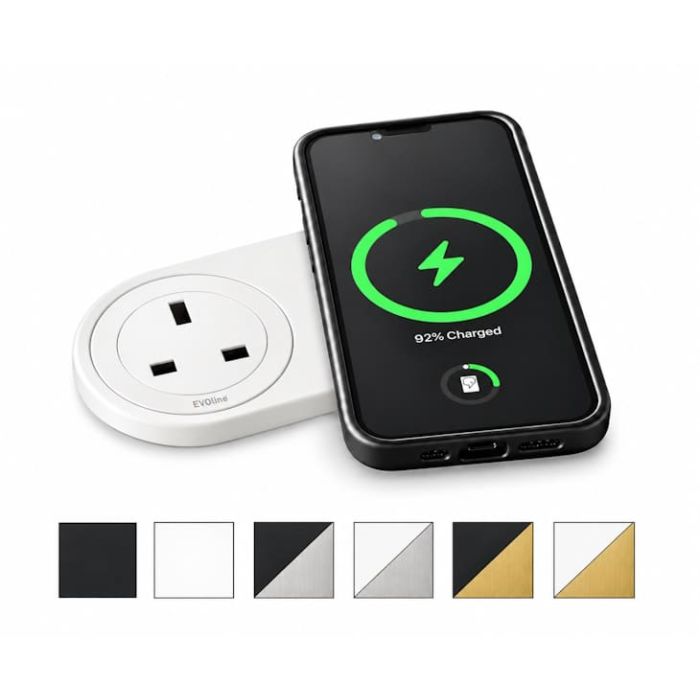

EVOline One DisQ w/ Single Socket & Wireless Charger - Choice of Colour
EVOline One DisQ, choice of colour. Single socket with a wireless charger. Charger and socket can be used simultaneously. Compact power or data access can be installed vertically or horizontally. 54mm dia. cut-out. 50mm minimum installation depth guaranteed by the flexible cable.
EVOline One DisQ, choice of colour. Single socket & wireless charger. A discreet and space-saving power and data access solution. Easy to retrofit with small adjustment to upgrade whilst keeping the previously installed EVOline One. Horizontal and Vertical installation.
Key benefits:
Discreet & space-saving
Wireless charging of compatible smartphones
Charger & socket can be used simultaneously
Low installation depth
Horizontal or vertical installation
Easy to retrofit to EVOline one units with small adjustment
Technical Details:
Choice of colour - Please see image gallery for the range of colour combinations and materials
Cut-out dia. (mm): 54
Min. installation depth (mm): 50
Length (mm): 150.5
Width (mm): 70.5
1 Socket
1 Wireless Charger
Unit must be placed centrally to charge
Standard wing clamps suitable for installation between a thickness of 9 - 25mm
Nominal Current V AC: 230
Nominal Current A: 5
Input power W Max: 1150
Protection rating: IP 20
Supplied Parts:
1.5m Supply cable & 13A UK Plug
DisQ supplied with 1.5m USB cable & Type C Plug
UK/USB A & C power adaptor (20W) included loosely in box
Standard wing clamps
Warranty:
1-year warranty
Note
Please note that you should not pre-cut your cut-out prior to the delivery of the product to ensure a correct fit
VAT Exemption is not available on this product (Info)
EVOline One DisQ, choice of colour. Single socket with a wireless charger. Charger and socket can be used simultaneously. Compact power or data access can be installed vertically or horizontally. 54mm dia. cut-out. 50mm minimum installation depth guaranteed by the flexible cable.
Simply copy this text directly into your specification document...
EVOline One DisQ w/ Single Socket & Wireless Charger - Choice of Colour
Product code: ODQS.Q18336.x
EVOline One DisQ, choice of colour. Single socket with a wireless charger. Charger and socket can be used simultaneously. Compact power or data access can be installed vertically or horizontally. 54mm dia. cut-out. 50mm minimum installation depth guaranteed by the flexible cable.
