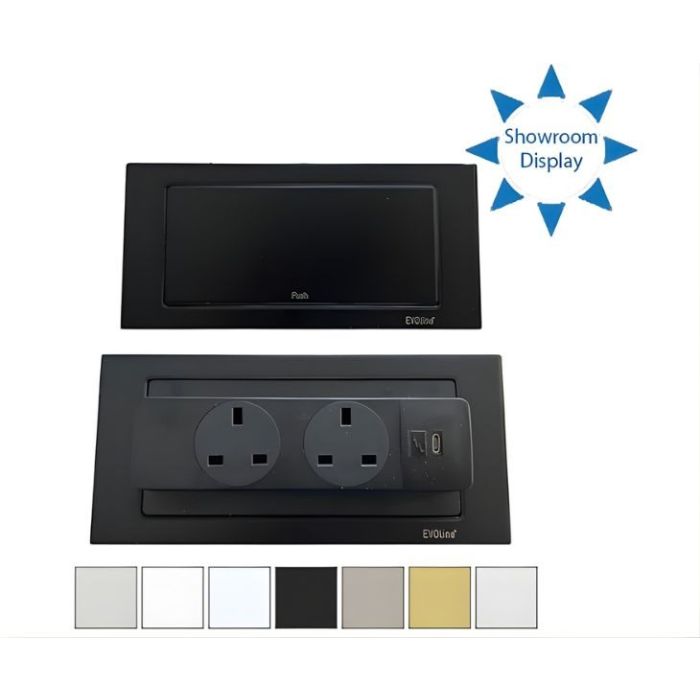

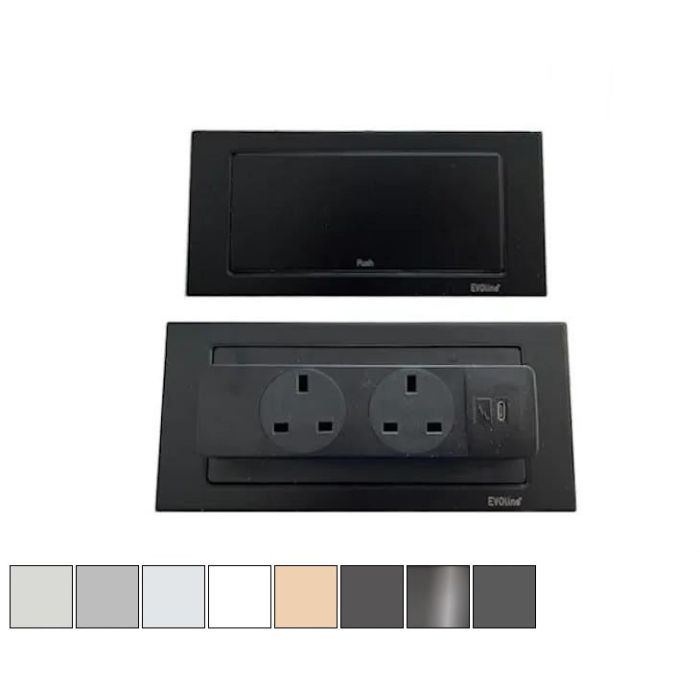

The EVOLine BackFlip, choice of colour. A light push rotates the thin panel concealing the charger and power sockets, the location is far above the panel, so they are protected against water running in from the side. Flush mounted installation possible. Assemble quickly in panels of 10 - 40mm thickness. 53mm installation depth. 215mm (L) x 88mm (W) cut-out. 1-year warranty.
EVOline BackFlip, choice of colour. The thin panel allows the user with a light touch to turn, upwards or down wards the. Protected against water running in from the sides from the charger and power sockets location far above the panel.
Quick and easy to install due to the quick assembly process, snap in the mounting plate and it is done.
Key benefits:
Thin panel for concealing
Push lightly with a finger to flip
USB charger and power sockets are protected against water
Low installation depth allows for mounting above drawers or devices
Easy to install due to the quick assembly process
Possible for a flush mounted installation
Technical Details:
Choice of colour - Please see image gallery for the range of colour combinations and materials
Installation depth (mm): 53
USB C
2 Socket
Cut-out width (mm): 88
Cut-out length (mm): 215
The unit will not be installed flush with the worktop and will be raised by ca. 3-5mm when closed
Nominal Current V AC: 230
Nominal Current A: 5
Input power W Max: 1150
Protection rating: IP 20
Warranty:
1-year warranty
Note
Please note that you should not pre-cut your cut-out prior to the delivery of the product to ensure a correct fit
VAT Exemption is not available on this product (Info)
The EVOLine BackFlip, choice of colour. A light push rotates the thin panel concealing the charger and power sockets, the location is far above the panel, so they are protected against water running in from the side. Flush mounted installation possible. Assemble quickly in panels of 10 - 40mm thickness. 53mm installation depth. 215mm (L) x 88mm (W) cut-out. 1-year warranty.
Simply copy this text directly into your specification document...
EVOline BackFlip - Choice of Colour
Product code: 1592.710.x
The EVOLine BackFlip, choice of colour. A light push rotates the thin panel concealing the charger and power sockets, the location is far above the panel, so they are protected against water running in from the side. Flush mounted installation possible. Assemble quickly in panels of 10 - 40mm thickness. 53mm installation depth. 215mm (L) x 88mm (W) cut-out. 1-year warranty.
