Closomat Palma Vita shower toilet, with 1-year breakdown cover. Automatic WC with warm water washing, flushing and warm air-drying functions. Optional extras to suit the end-user. British made. WRAS approved. Safe working load 190kg/30st. Price includes delivery and commissioning by Closomat once installed. Please note only available for shower toilets installed in UK mainland addresses.

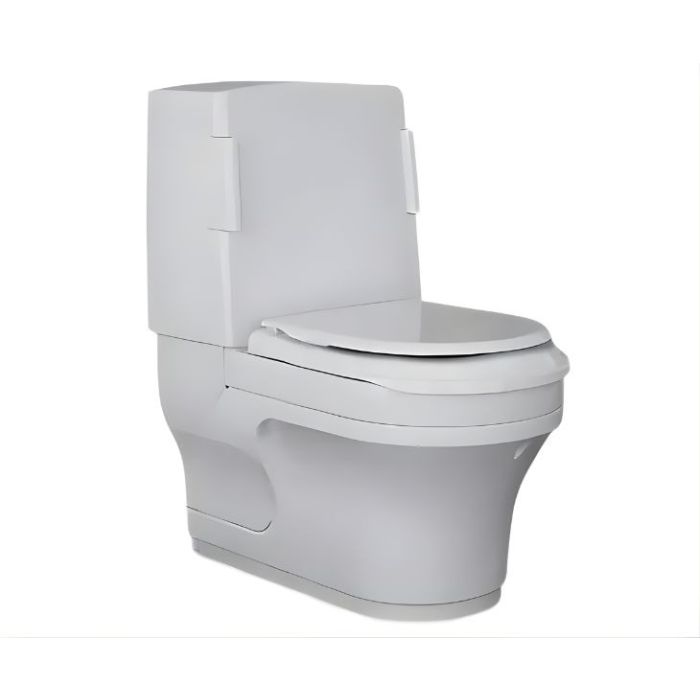

The Closomat Palma Vita is a floor standing automatic shower toilet that provides washing, flushing and warm air drying from one simple operation.
User-friendly, the Palma Vita is also ideal for those who have restricted use of their hands.
By reducing hand contact, it also improves hygiene for all users.
Key benefits:
Combines functions of a WC and bidet with addition of drying air
Improves personal hygiene - cleaning with warm water not paper
Simultaneous flushing and washing (a unique feature)
Unique one-touch system - allows the user to operate the toilet simply by pressing and releasing the elbow pads mounted either side of the cistern
Customisable to suit each individual's needs
Height adjustable skirt elegantly conceals the raised plinths
Can be used at all times as a conventional WC
UK made in a dedicated plant
Douche arm selection:
Standard douche arm
Extended single spray douche arm - for the larger user
Extended twin spray douche arm - for female users
All douche arm options are included in the price of the Palma Vita
For more information, please refer to the 'Douche Arms Specification Guide' in the 'Installation and Help Guides' section above
Optional extras:
Integrated Fold-down Support Arms
Robust and secure support arms designed and manufactured specifically for the Palma Vita
The support arms fold out of the way to aid side transfer from a wheelchair and can further aid the user's stability
The arms are ideal for installations where the wall construction is poor
Safe working load: 190kg/30st
Note: Maximum concealed plinth height 50mm when arms are fitted to ensure stability of the toilet
The fold-down support arm brackets are pre-fitted, but the arms are supplied loose for site installation
For more information, please refer to the 'Integrated Fold-down Support Arms - Technical Data Sheet' in the 'Installation and Help Guides' section
Soft Arm Sleeves
Easy to fit, soft arm sleeves provide a comfortable and hygienic hand grip
Dark blue in colour - aids the visually impaired
For use in conjunction with the integrated support arms
Lateral Body Supports
These easily adjustable and comfortable additions help to provide extra side support and stability to the user
For use in conjunction with the integrated support arms
Touch Sensitive Hand / Foot Switch (HTFS)
This device is for users who are unable to use the standard elbow pads
Air operated, no electricity is required to operate it, only very light pressure
Includes wall mounting bracket
Can be placed on the floor or handheld
Proxy Switch
Making use of "passive technology", the proxy switch allows users with little or no grip to activate the unit, simply by pressing their hand / body part in front of the sensor
Infrared Remote Control
This simplistic 'push and go' style infrared control provides a versatile option which is ideal for use by carers
Includes wall mounting bracket
Concealed Floor Plinths
Plinths for raising the toilet height
For use with a shower chair or to aid direct wheelchair transfer
The plinth is concealed by the toilet's height adjustable skirt
Note: If ordering the Integrated Support Arms - The maximum allowable plinth height is 50mm
Rear Infill Panel
The infill panel has been designed to aid installations where pipe-work inhibits the Palma Vita from being located against the wall
The infill panel is 100mm taller than the Palma Vita - it must be cut from the bottom to suit the toilet height
Available in a range of thickness sizes: 25, 50 and 75mm
Seat Upgrade Options:
Upgrade options available are junior, adult, and adult horseshoe open fronted soft seats
All soft seats are supplied in a dark blue colour to aid the visually impaired and with a white toilet seat lid
For more information, please refer to the 'Toilet Seat Dimensions' in the 'Installation and Help Guides' section above
Junior soft seat:
- Aperture 165mm wide x 250mm depth
Adult soft seat:
- Aperture 225mm wide x 291mm depth
Adult horseshoe open fronted soft seat:
- 83mm open front width. Aperture 223mm wide x 384mm overall depth
Warranty and commissioning:
1 year manufacturer warranty as standard
Options to increase the warranty - please select above if desired
Commissioning by Closomat is included in the price - once installed, please contact them directly to arrange a site visit
Warranty period starts once commissioning has been completed
Technical details:
Overall dimensions (mm): 869 H x 451 W x 730 D
Standard installed height to the toilet pan rim (mm): 410
Standard installed height to the Palma Vita ‘standard’ toilet seat (mm): 445
Safe working load: 190kg/30st
Electric supply: 220/240v 50hz single phase AC supply
Supplied with 1000mm long, three core (live/neutral/earth) insulated 3183Y-1-white control flex-cable
Compliant with current Electrical Regulations - Can be fitted in Zone 1 of a bathroom/wetroom
Electric loading: 4.5A-4.9A, maximum power 1300 watts
A 10A fused spur is required for isolation with an earth connection
A fused spur is required for isolation with an earth connection
IP Rating: IPX4
WRAS approved
Requires 15mm COLD inlet feed from mains supply or a storage vessel
Flow rate - 8 litres/minute
Cistern capacity (litres): 6-9, set at 6 litres
Boiler capacity (litres): 1.7
Overflow: Internal overflow which discharges into the WC pan
Pan has a horizontal spigot standard 100mm diameter outlet, suitable for standard pan connection fittings
In the event of a power failure, the Palma Vita operates like a standard flush toilet
Soil connections suitable for the Palma Vita (not included):
S-Trap (vertical fall) wall to centre of pipe from 70-230mm max.
P-Trap (horizontal) floor to centre of pipe 200mm max.
The Palma Vita is suitable for all turned trap outlets, through purpose made removable side covers on lower level
Download the PDF Installation Instructions for more information
Please note:
Due to the custom nature of this item and hygiene reasons this product is non-returnable
The Palma Vita must not be in direct line with the shower spray in a bathroom or shower room installation
Some form of partition between a shower and the Palma Vita is advisable to prevent any water spraying directly onto the equipment
A shower should not be used in conjunction with the Palma Vita - under no circumstances should a user shower whilst seated on the Palma Vita
