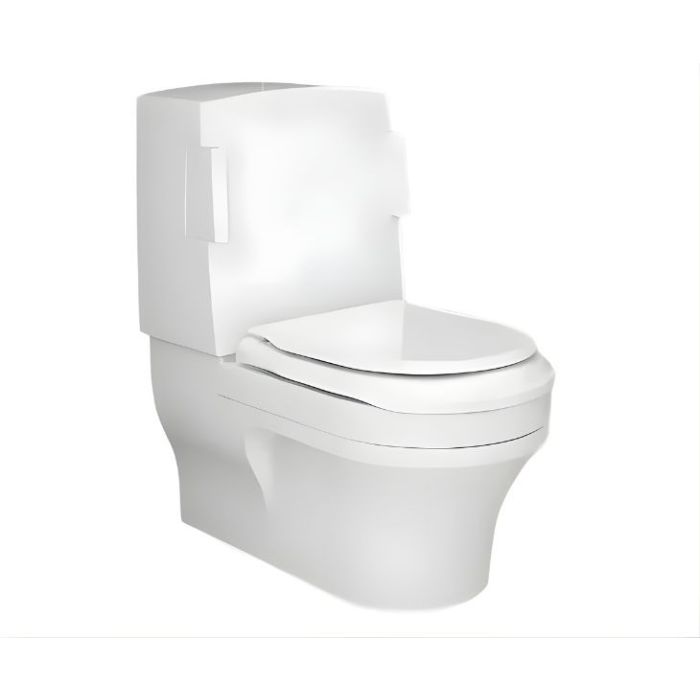

Closomat Lima Vita Shower Toilet, with Options
The Closomat Lima Vita is the wall hung version of the popular Palma Vita shower toilet which enables the unit to be fixed at exactly the height required by the user, the Lima Vita provides washing, flushing and warm air drying from one simple operation.
User-friendly, the Lima Vita is also ideal for those who have restricted use of their hands. By reducing hand contact, it also improves hygiene for all users.
The Lima Vita is also easy to install with 4x bolts required. This unit is required to be secured to the finished wall surface. It therefore relies on the structural strength of the wall to which the unit is being fitted.
Key benefits:
- Ergonomically designed to properly support the user
- Ideally suited for underfloor heating
- Wall hung version of the Closomat Palma Vita shower toilet
- Combines functions of a WC and bidet with addition of drying air
- Improved personal hygiene - cleaning with water not paper
- Enables unit to be fixed at exact height required by user
- Facilitates bathroom/Wetroom floor cleaning
- Can be used at all times as a conventional WC
- Safe working load: 190kg/30st
- Simultaneous flushing and washing (a unique feature in the industry)
- Unique one-touch system - allows the user to operate the toilet simply by pressing and releasing the elbow pads mounted either side of the cistern
- Customisable to suit each individual's needs
- UK made in a dedicated plant
Douche arm selection:
- Standard douche arm
- Extended single spray douche arm
- Extended twin spray douche arm (not suitable for male users)
- All douche arm options are included in the price of the Lima Vita
- For more information, please refer to the 'Douche Arms Specification Guide' in the 'Installation and Help Guides' section above
Optional extras:
Integrated Fold-down Support Arms
- Robust and secure support arms designed and manufactured specifically for the Lima Vita
- The support arms fold out of the way to aid side transfer from a wheelchair and can further aid the user's stability
- The casing of the Lima Vita will require drilling to secure the support arms, see installation arms
- The stainless steel support foot should also be used to ensure stablitity for side transfers
Soft Arm Sleeves
- Easy to fit, soft arm sleeves provide a comfortable and hygienic hand grip
- Dark blue in colour - aids the visually impaired
- For use in conjunction with the integrated support arms
Lateral Body Supports
- These easily adjustable and comfortable additions help to provide extra side support and stability to the user
- For use in conjunction with the integrated support arms
Touch Sensitive Hand / Foot Switch (HTFS)
- This device is for users who are unable to use the standard elbow pads
- Air operated, no electricity is required to operate it, only very light pressure
- Includes wall mounting bracket
- Can be placed on the floor or handheld
Proxy Switch
- Making use of "passive technology", the proxy switch allows users with little or no grip to activate the unit, simply by pressing their hand / body part in front of the sensor
Infrared Remote Control
- This simplistic 'push and go' style infrared control provides a versatile option which is ideal for use by carers
- Includes wall mounting bracket
Seat Upgrade Options:
- Upgrade options available are junior, adult, and adult horseshoe open fronted soft seats
- All soft seats are supplied in a dark blue colour to aid the visually impaired and with a white toilet seat lid
- For more information, please refer to the 'Toilet Seat Dimensions' in the 'Installation and Help Guides' section above
- - Aperture 165mm wide x 250mm depth
- - Aperture 225mm wide x 291mm depth
- - 83mm open front width. Aperture 223mm wide x 384mm overall depth
Junior soft seat:
Adult soft seat:
Adult horseshoe open fronted soft seat:
Warranty and commissioning:
- 1 year manufacturer warranty as standard
- Options to increase the warranty - please select above if desired
- Commissioning by Closomat is included in the price - once installed, please contact them directly to arrange a site visit
- Warranty period starts once commissioning has been completed
Technical details:
- Electric supply: 220/240v 50hz single phase AC supply
- Electric loading: 4.5A-4.9A, maximum power 1300 watts
- Compliant with current Electrical Regulations - Can be fitted in Zone 1 of a bathroom / Wetroom
- Electric loading: 4.5A-4.9A, maximum power 1300 watts
- A 10A fused spur is required for isolation with an earth connection
- A fused spur is required for isolation with an earth connection
- IP Rating: IPX4
- WRAS approved
- Requires 15mm COLD inlet feed from mains supply or a storage vessel
- Flow rate - 8 litres/minute
- Cistern capacity (litres):6
- Boiler capacity (litres): 1.7
- Overflow: Internal overflow which discharges into the WC pan through the flush valve
- Safe working load (kg): 190 (30 stone)
Space planning:
- Minimum distance from floor to underside of toilet (mm): 65.5
- For more information, please refer page 4 of the PDF installation instructions
Soil connection:
- Soil connection is directly through the wall at the rear of the unit
- Pan connector will work with S or P Trap, left or right hand (not supplied)
Please note:
- Due to the hygiene reasons and the custom nature of this item, this product is non-returnable
- The Lima Vita must not be in direct line with the shower spray in a bathroom or shower room installation
- Some form of partition between a shower and the Lima Vita is advisable to prevent any water spraying directly onto the equipment
- A shower should not be used in conjunction with the Lima Vita - under no circumstances should a user shower whilst seated on the Lima Vita
Manufacturer | Closomat |
---|---|
Brand / Model | Closomat / Lima Vita |
Style / Type | Care - Wall-hung Shower Toilet |
Max. Load (kg / St) | 190 / 30 |
Installed WC Pan Height (mm) | N/A (Wall Hung) |
Warranty | 1 Year Standard, Paid Upgrade 1 - 4 Years |
Flush Operation | Elbow Push Pads, OPT - Remote Control, OPT - Infrared Proxy Switch, OPT - Hand Touch Foot Switch (HTFS), OPT - SHW Chair Seat Sensor Bypass |
Seat Length (mm) | 730 to Pan Front |
Seat Width (mm) | 426 |
Technologies | OPT - Rear Wash Douche, OPT - Extended Rear Wash Douche, OPT - Rear & Feminine Wash Douche, Warm Air Dryer, Simultaneous Flushing & Washing, Adjustable Water Temp, Adjustable Flow Rate, Warm Water Wash Cycle, Pulsating Spray, Oscillating Spray, Self-cleaning Function, OPT - Dark Blue Junior Soft Seat, OPT - Dark Blue Adult Soft Seat, OPT - Dark Blue Adult Open Fronted Soft Seat, OPT - Fold Down Support Arms, OPT - Pair of Soft Arm Sleeves, OPT - Lateral Body Supports |
Approvals | WRAS Approved |
Stock status | Made to order |
---|---|
Delivery time | 5-7 working days |
Returns Status | Non-returnable due to infection control |
