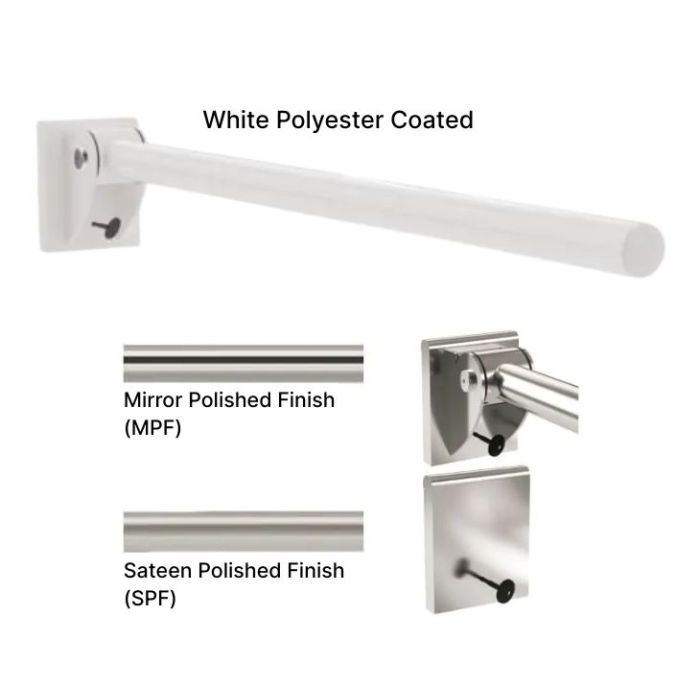

AWS Removable 800mm Friction Single Hinged Support Rail, Concealed Fixings - Choice of Finish
AWS Regent removable drop down 800mm support rail, friction hinge action, 35mm dia. strong tubular construction. The clever design allows for the rail to be removed from the wall allowing for the discreet cover plate to be fitted when the rial is not required. Choice of Mirror (MPF), Sateen (SPF) polished finishes or White powder coated polyester (for a warmer touch) 304 grade stainless steel for wet and damp areas. Ideal for flexible installations when the support rail is not always required, such as hotel rooms, guest houses and private homes with a sleek and stylish appearance. For toilet pans projecting 700 to 750mm from the wall. Max. load 120kg. Doc M compliant.
The AWS Regent stainless steel removable 800mm folding support arm with a friction hinge, with concealed fixings and discrete cover plate for when the support rail is not required.
Ideal for flexible installations when the support rail is not always required, such as hotel rooms, guest houses and private homes.
Designed for use alongside WCs for extra support, and for use in shower areas where there is a requirement for a well-designed substantial rail for the safety of all users.
Suitable for use with toilet pans projecting 700 to 750mm from the wall.
Available in a choice of Mirror, Sateen polished finishes and White powder coated polyester for a warmer touch.
Constructed from high quality materials, the 35mm diameter gives the rail increased strength and stability.
Key benefits:
304 grade stainless steel drop down support arm
Ideal for use in wet or damp areas
Easy to use friction action hinge
Stainless steel backplate for strength and durability
Backplate bolt holes pre-drilled for M8 bolts (fixings not included)
Removable cover plate, manufacture from stainless steel hides the wall fixing plate
Made in Britain
Doc M compliant
Choice of Mirror (MPF), Sateen (SPF) polished finishes or White polyester coated for a warmer touch
Matching AWS Regent grabrails and accessories also available
Technical details:
Length (mm): 800
Diameter (mm): 35
Strong tubular construction
Locking cover plate for when rail not required
Tested to 120kg in vertical and 45 degree positions (this does not include wall fixings)
Warranty:
10 year manufacturer warranty
Please note:
Fixings not included - the installer should select the correct fixing based on wall type
VAT Exemption is available on this product - deducted at Checkout (Info)
AWS Regent removable drop down 800mm support rail, friction hinge action, 35mm dia. strong tubular construction. The clever design allows for the rail to be removed from the wall allowing for the discreet cover plate to be fitted when the rial is not required. Choice of Mirror (MPF), Sateen (SPF) polished finishes or White powder coated polyester (for a warmer touch) 304 grade stainless steel for wet and damp areas. Ideal for flexible installations when the support rail is not always required, such as hotel rooms, guest houses and private homes with a sleek and stylish appearance. For toilet pans projecting 700 to 750mm from the wall. Max. load 120kg. Doc M compliant.
Simply copy this text directly into your specification document...
AWS Removable 800mm Friction Single Hinged Support Rail, Concealed Fixings - Choice of Finish
Product code: AWS-0143
AWS Regent removable drop down 800mm support rail, friction hinge action, 35mm dia. strong tubular construction. The clever design allows for the rail to be removed from the wall allowing for the discreet cover plate to be fitted when the rial is not required. Choice of Mirror (MPF), Sateen (SPF) polished finishes or White powder coated polyester (for a warmer touch) 304 grade stainless steel for wet and damp areas. Ideal for flexible installations when the support rail is not always required, such as hotel rooms, guest houses and private homes with a sleek and stylish appearance. For toilet pans projecting 700 to 750mm from the wall. Max. load 120kg. Doc M compliant.
