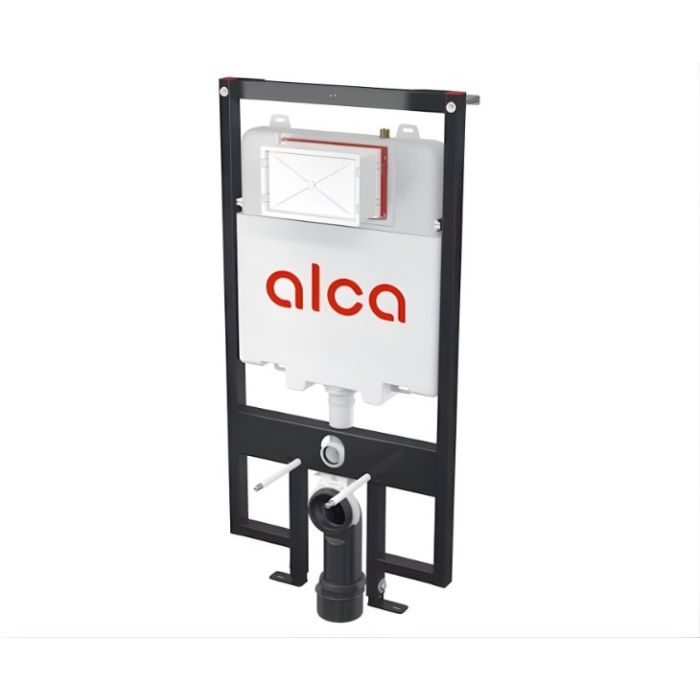

Alca 1.12m Slim Pre-Wall Frame & Cistern, Front Actuator, 83 to 100mm Max. Depth
Alca Slim self-supporting frame for mounting wall hung WC pans with an Installation depth of 83 to 100mm, frame width 570mm x 1175mm high, in front of a support wall or within a partition framed wall with a plasterboard finish and a floor thickness of 0-100mm.
Compatible all ALCA flush plates: Basic, Sensor and NIGHT LIGHT.
For toilet pans with a connecting pitch of 180mm or 230mm.
Key benefits:
- Dual flush independently adjustable with hygienic reserve
- Compatible all ALCA flush plates: Basic, Sensor and NIGHT LIGHT
- Polystyrene insulation prevents condensation forming and dampens vibrations
- Visible marks for both levelling and the centerline
- Installation depth 83mm
- Installation depth adjustable from 20-60mm
- Tilt the cistern for easy installation in timber frames
- Can be installed in a partition, in front of the bearing wall
- The frame allows the anchoring to a separate sufficiently strong plasterboard partition, in front of the bearing wall
- The fitted frame should be covered with a plasterboard panel
- Adjustable telescopic feet, range of 0-100mm
- The service opening cover simplifies assembly and prevents the penetration of moisture and impurities
- The cistern is made of one piece, thus ensuring 100% impermeability
- Water supply from the rear/top
- Angle valve with the ability to connect to the Mepla piping system
- Dispenser for WC cistern tablets included
- Maintenance work without using any tools
- Frame material: powder-coated metal
Approvals:
- Kiwa Approved
- Fixings for WC pan: threaded rod 2x M12, 4x washers, 2x covers, 2x nuts, & 2x thread protectors
- Fixation set: 4x screws Ø8×60m, and 4x dowels Ø12
- Elbow waste connector HT 90/90/110 polyethylene, PE-HD
- 2-piece cover of the service opening is simply adjustable
- Cistern with fill and flush valve
- End-caps for protecting the connecting holes during installation of the system
- Set for inserting toilet tablets
- Self-supporting frame
- Fittings 1/2" water connection with the integrated angle valve Schell 1/2–3/8"
- Drainage seal, PP connector, connector seal
- Inlet seal, PP outlet, wrapping seal
Warranty:
- 15 year manufacturer
Manufacturer | Alca |
---|---|
Flush Plate Type | Alca Flush Plate Basic , Alca Sensor Flush Plate, Alca Night Light Flush Plate |
Frame Size (mm) | Frame Width: 570, Frame Height: 1175 |
Wash/Dry Bidet/Toilet - Compatible | No |
Style / Type | Wall-hung WC |
Max. Load (kg / St) | 400 / 62.9 |
Technical Info. | Water Connection: G1/2", Water Pressure: 0.05 - 1.6 MPa, Recommended Water Pressure: 0.3 - 0.5 MPa, Big Flush: 6 - 9 l, Small Flush: 2.5 - 3.5 l, Factory Setting - Large Flush: 6 l, Factory Setting - Small Flush: 3 l, Hygienic Reserve: 3 l, Cistern Water Volume: 9 l |
Installed WC Pan Height (mm) | 410 |
Warranty | 15 years |
Flush Operation | Front Actuator |
Approvals | Kiwa Approved |
