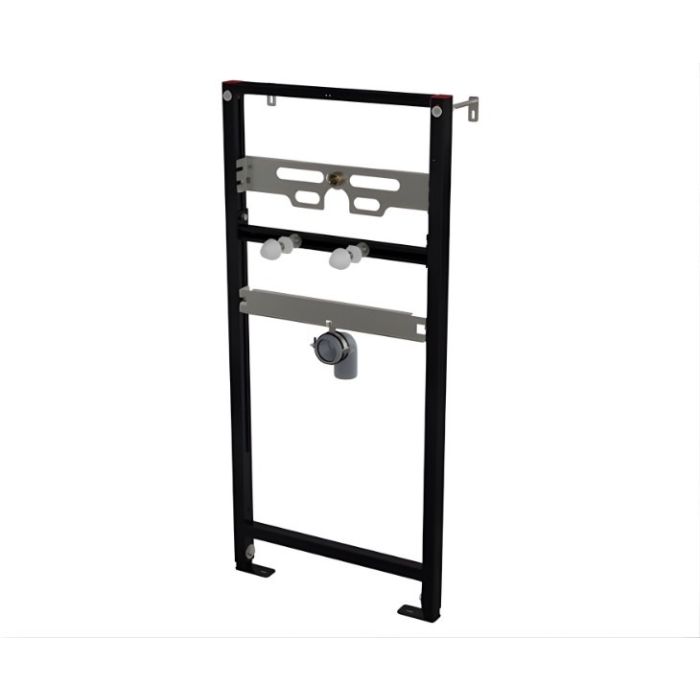

Alca 1.12m Pre-Wall Mounting Frame for Wall-hung Urinal, 200mm Max. Depth
Alca self-supporting frame for mounting a wall-hung urinal. Installation depth of up to 200mm maximum, frame width 510mm x 1120mm high. For mounting in front of a support wall or within a partition framed wall with a plasterboard finish and a floor thickness of 0-200mm.
Wall-hung urinal mounting pitch 80-280mm, water connection adjustable 0-125mm from center, and adjustable waste 0-110mm from the centre.
Key benefits:
- To connect the pressure urinal flusher ATS001
- Installation depth 200mm max.
- The frame allows the anchoring to a separate sufficiently strong plasterboard partition, in front of the bearing wall
- Can be installed in a partition, in front of the support wall
- Adjustable anchor feet and a spring-lock system, with a range of 0-200mm
- The fitted frame should be covered with a plasterboard panel
- Mounting pitch of the urinal is 80-280mm
- Water connection adjustable 0-125mm from center
- Frame material: powder-coated metal
Approvals:
- Kiwa Approved
- Urinal fixings: 2x M10 screws
- Fixation set: 4x screws Ø8×60m, and 4x dowels Ø12
- Covers for the fixing material
- Waste elbow HT 50 with seal
- Connection fittings G1/2" - G1/2"
- Self-supporting frame with a C-profile
- Max. load: 150kg
Warranty:
- 15 year manufacturer
Manufacturer | Alca |
---|---|
Frame Size (mm) | Frame Width: 510, Frame Height: 1120 |
Wash/Dry Bidet/Toilet - Compatible | No |
Style / Type | Wall-hung Urinal |
Max. Load (kg / St) | 150 / 23.5 |
Technical Info. | Water Connection: G1/2" |
Warranty | 15 years |
Approvals | Kiwa Approved |
