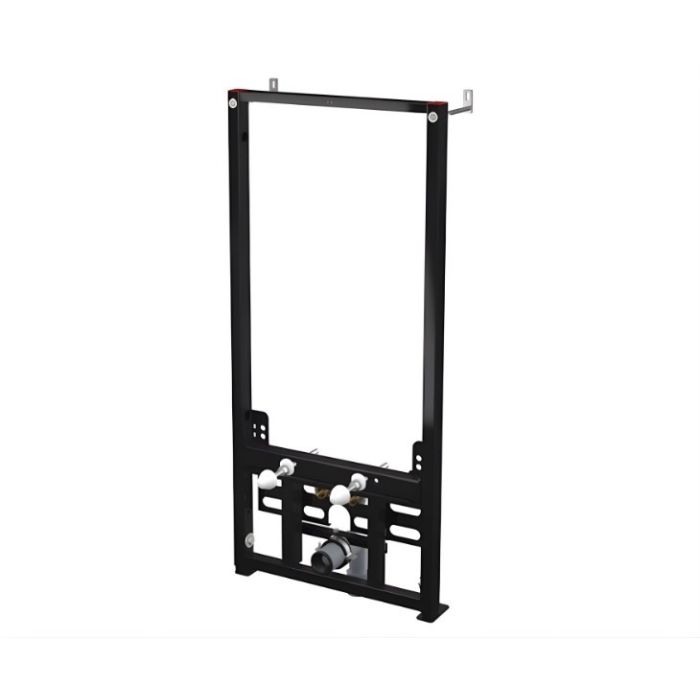

Alca 1.12m Pre-Wall Mounting Frame for Bidet, 200mm Max. Depth
Alca self-supporting frame for mounting a wall-hung bidet with an Installation depth of up to 200mm, frame width 510mm x 1120mm high, in front of a support wall or within a partition framed wall with a plasterboard finish and a floor thickness of 0-200mm. For bidets with a connecting pitch of 180mm or 230mm. 15-year warranty.
Alca self-supporting frame for mounting a wall-hung bidet with an Installation depth of up to 200mm, frame width 510mm x 1120mm high, in front of a support wall or within a partition framed wall with a plasterboard finish and a floor thickness of 0-200mm.
For wall-hung bidets with a connecting pitch of 180mm or 230mm.
Key benefits:
Installation depth 200mm max.
The frame allows the anchoring to a separate sufficiently strong plasterboard partition, in front of the bearing wall
Can be installed in a partition, in front of the support wall
Adjustable anchor feet and a spring-lock system, with a range of 0-200mm
The fitted frame should be covered with a plasterboard panel
Water supply pitch: 55-145mm
Frame material: powder-coated metal
Approvals:
Kiwa Approved
Scope of supply:
Fixings for bidet: threaded rod 4x M12, 4x washers, 2x covers, 2x nuts, & 2x thread protectors
Alca self-supporting frame for mounting a wall-hung bidet with an Installation depth of up to 200mm, frame width 510mm x 1120mm high, in front of a support wall or within a partition framed wall with a plasterboard finish and a floor thickness of 0-200mm. For bidets with a connecting pitch of 180mm or 230mm. 15-year warranty.
VAT Exemption is not available on this product (Info)
×
Simply copy this text directly into your specification document...
Alca 1.12m Pre-Wall Mounting Frame for Bidet, 200mm Max. Depth
Product code: A105/1120
Alca self-supporting frame for mounting a wall-hung bidet with an Installation depth of up to 200mm, frame width 510mm x 1120mm high, in front of a support wall or within a partition framed wall with a plasterboard finish and a floor thickness of 0-200mm. For bidets with a connecting pitch of 180mm or 230mm. 15-year warranty.
