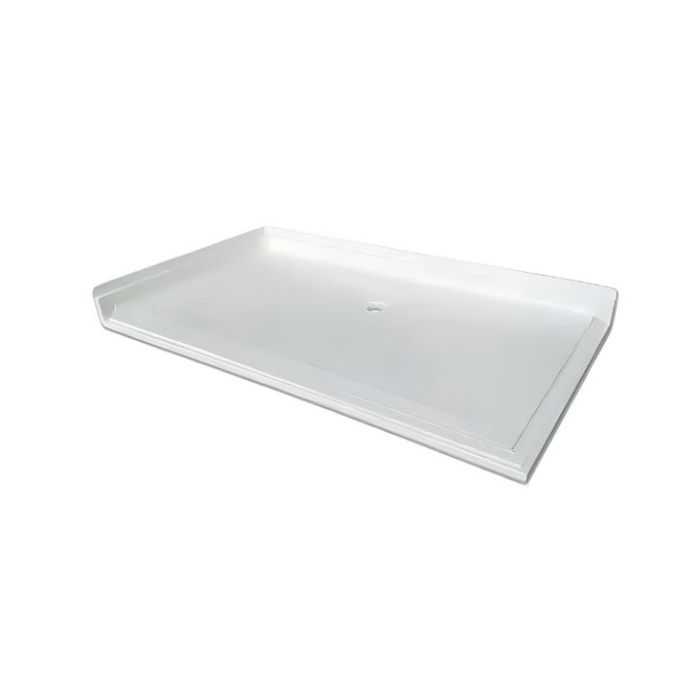

AKW / Contour Swift Corner Entry SHWR Tray No TRUESEAL2 - Choice of Size & Waste
The AKW / Contour Swift shower tray gives you the perfect choice when a practical, corner entry shower area is required.
Once fitted a Swift shower tray provides barrier-free, level access for those with mobility difficulties.
Also, installing a Swift tray only requires the removal of 18mm of flooring, the equivalent of a floorboard.
Key benefits:
- For floors with a tiled floor finish
- For suspeneded timber or concrete / screed floors
- Barrier free, level access - assists effortless wheelchair entry
- Creates a defined shower area without reducing floor space
- Quick and easy to install
- Anti-slip surface for an assured underfoot grip
- Supplied without the Trueseal2 edge. This tray is for installation with floor tiles only
- Manufactured in the UK from Glass fibre-reinforced plastic (GRP)
Choice of size and handing:
- Please select below as required
Waste options:
STW8B-95 Gravity Waste
- 50mm water seal gravity waste
- 95mm depth
- Flow rate in excess of 22 litres per minute
- Manufactured by McAlpine
UPSW-3-22 Pumped Waste
- To be used in conjunction with a shower waste pump
- Top access, easy to clean
- 22mm outlet
- 85mm chrome plate flange and grid fitting
- 30mm depth
- Manufactured by McAlpine
- Pump not included
Technical details:
- Choice of size (mm): 795X795, 945x945, 1045x1045, 1095x795LH or RH, 1245x1245, 1295x745LH or RH, 1345x845LH or RH, 1345x945LH or RH
- Max load (kg): 270
- Locate in wooden or solid floors - minimal need for additional support under the tray
- Requires only 18mm of existing floor to be removed (apart from the trap area)
- 14mm tiling lip - easily accommodates wallboards and wall tiles
Warranty:
- Lifetime manufacturer warranty
Manufacturer product codes:
- Tray only, no TRUESEAL2 code: SWIF795NTNW, SWIF945NTNW, SWIF1045NTNW, SWIF1095LHNTNW, SWIF1095RHNTNW, SWIF1245NTNW, SWIF1295LHNTNW, SWIF1295RHNTNW, SWIF1345LHNTNW, SWIF1345RHNTNW, SWIF1345x945LHNTNW, SWIF1345x945RHNTNW
- Tray with gravity waste, no TRUESEAL2 code: SWIF795NT, SWIF945NT, SWIF1045NT, SWIF1095LHNT, SWIF1095RHNT, SWIF1245NT, SWIF1295LHNT, SWIF1295RHNT, SWIF1345LHNT, SWIF1345RHNT, SWIF1345x945LHNT, SWIF1345x945RHNT
Manufacturer | AKW / Contour |
---|---|
Model | AKW / Contour - Swift |
Tray Size (mm) | 795x795, 945x945, 1045x1045, 1095x795, 1245x1245, 1295x745, 1345x845, 1345x945 |
Handing | Left Hand, Right Hand, Unhanded |
Entry Configuration | Corner Entry |
Step-in Height (mm) | Level Access - 0 |
Thickness of Tray (mm) | 26 |
Waste Compatibility | Gravity Waste, Pumped Waste |
Tray Edge for Floor Finish | No TRUESEAL2 - Tiles |
Stock status | Made to order |
---|---|
Delivery time | Please Email for a lead time |
Returns Status | Returnable in 14 days |
